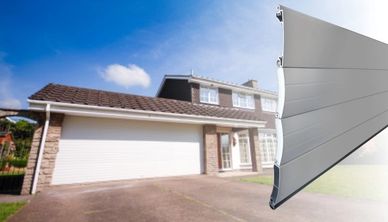

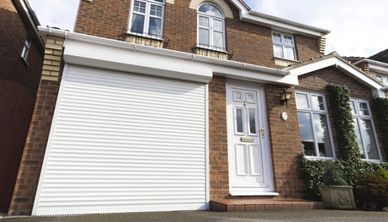

Roller Garage Doors
Visually they look stunning with gentle curves and subtle lines.
To Suit Most Garage Designs.
Our doors can be installed to most designs of garage. One of the most popular designs is an arched headed lintel.
If you have two single sized garage doors with a centre pillar, and you would like to change this to one double sized door, the centre pillar can be removed, and one double sized insulated roller door will create the solution.
“Laminated Finish” what does this mean?
Laminated or “Foiled” are two descriptions of the same process. At Birkdale, we have our own in-house technology which enables us to “laminate” our Polyester smooth aluminium materials. This creates a much more resilient surface that is far more able to survive against climatic changes and abrasion, and importantly, retain the superb appearance you originally enjoyed with your door. With the built in solar shield technology the Laminate increases the insulation value up to 60%.
Laminate material is used across many industries including; automotive, house building, furniture manufacturing and many more.
Using the very highest quality of Laminate material, Birkdale can provide a surface of our garage doors that carry a 15-year warranty against colour fading. We can provide literally 1000s of colour choices in several appearances.
Continuing our range of unique colours and finishes, you can choose from our “Colour Matched Laminated Finish Range”.
This range offers you any choice of colour you may wish for. Any colour that is not included in the “Polyester Smooth Finish” “Trend Laminated Finish” or “Trend Plus Laminated Finish” can be supplied from this range.
For us to manufacture this special range of colours, we go through several stages of our process including laminating each lath individually to then put each lath through our “PLASCOAT” colour treatment process. “PLASCOAT” is widely used in the UPVC and Aluminium front entrance door market and has an extraordinary tough and resilient finish.
Other Finishes
Polyester Smooth Finish
Colour Matched Laminated Finish
Polyester Smooth Finish
This is our entry level Polyester Finish
Trend Laminated Finish
Colour Matched Laminated Finish
Polyester Smooth Finish

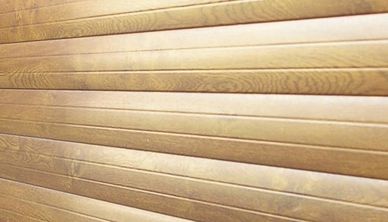

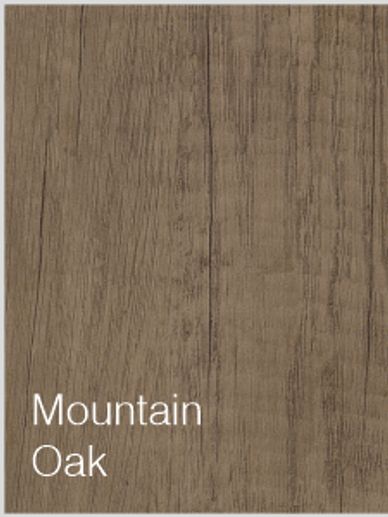

A range of the most popular colours in our laminated finish; Anthracite Grey (smooth and woodgrain), Balmoral, Chartwell Green, Chocolate Brown, Cream White, Crystal White Ash, Golden Oak, Irish Oak, Jet Black (woodgrain), Mahogany, Moss Green, Mountain Oak, Slate Grey and Steel Blue. These are offered at a subsidised rate because of their popularity.
Colour Matched Laminated Finish
Colour Matched Laminated Finish
Colour Matched Laminated Finish

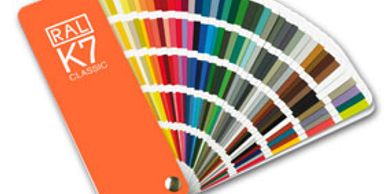

We can manufacture to colour match your specific colour and to any colour that is not RAL recognised.
Colour Matched Laminate Finish “PLASCOAT” is a unique range of colours and technology only from Birkdale. This range offers all colours from all colour ranges. In order to manufacture this range we use PLASCOAT colour treatment on top of our a laminated lath. This creates a colour finish which is far better than any other painted coloured lath.
INSULATION AND SECURITY
Main features
Hard Wearing Laminate Coating Option
Hard Wearing Laminate Coating Option
Hard Wearing Laminate Coating Option
A premium coating system often used on window profiles so an ideal match and they come with a 15 year warranty. This gives us 1000’s of colours all available from stock. Colour matching box, guides and fascia is also available. This coating opens up the possibility of matching any architecture and is much harder wearing than paint finished profiles traditionally supplied. In brief, we have more choice with better warranties all from stock for quicker delivery.

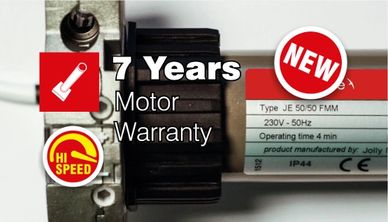

High Speed Tube Motor
Hard Wearing Laminate Coating Option
Hard Wearing Laminate Coating Option
A high speed motor provides smoother and faster operation. Supplied with an internal manual release and a 7 year warranty. These are supplied exclusively to Birkdale by Jolly Motors.

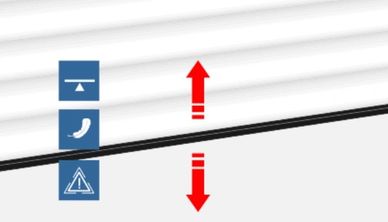

Door Monitor System
Hard Wearing Laminate Coating Option
3 Function Spring System
Unlike a standard safety edge this motion detection device offers full protection, beneath and against the door. Backed by a 5 year warranty as standard.
3 Function Spring System
Heavy Duty Barrel and Security Locking
3 Function Spring System
This reduces the work load on the motor, gives a smoother door operation, and provides a built in anti drop device.

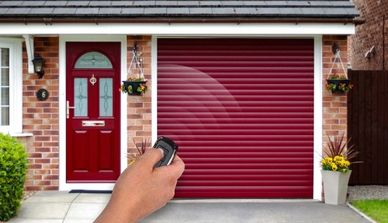

Remotely Operated
Heavy Duty Barrel and Security Locking
Heavy Duty Barrel and Security Locking
Two Channel handsets are supplied as standard, our roller doors are supplied with two remotes for easy, wireless operation. Four channel handsets can be supplied to operate up to four doors using one handset.
Heavy Duty Barrel and Security Locking
Heavy Duty Barrel and Security Locking
Heavy Duty Barrel and Security Locking
The 125mm round aluminum barrel is light weight but extremely strong with its honeycomb structure eliminates any deflection in the barrel even in doors at 5500mm wide. The increase in the diameter of the barrel also significantly increases the speed and smoothness of the door operation and with the additional retainer profile provides much superior security rating compared against traditional spring locks.
Insulated Curtain
Extruded Top and Bottom Rail

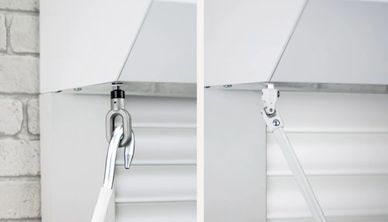

Internal Manual Override
Our Roller Door is thermally insulated to help with garage warmth. The 20mm thick insulated curtain is ideal for integral garages or garages with bedrooms above.
Internal Manual Override
Extruded Top and Bottom Rail
Internal Manual Override
In the event of a power cut, our internal manual override allows the door to be wound up and down via crank handle and eyelet. This can be upgraded to a permanently fixed knuckle system which is ideal for tight spaces. Our spring assisted system makes this easier to use.
Extruded Top and Bottom Rail
Extruded Top and Bottom Rail
Extruded Top and Bottom Rail
The aluminium extruded top and bottom rails are manufactured with a double wall profile. Add this to the heavy duty guide to give the door a rigid, stronger perimeter.

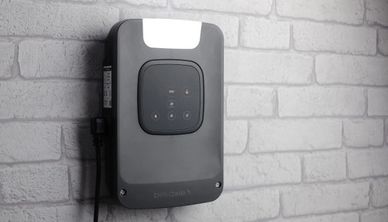

Touch Screen Control Box
Touch Screen Control Box
Extruded Top and Bottom Rail
Look at our stylish sleek designed control box and door monitor system. Features include a touch screen with LED light, battery status monitor, safety edge status and other indicators. Additional optional extras of alarm, touch screen keypad, smart phone operation and a wireless door entry system for your house door are available.

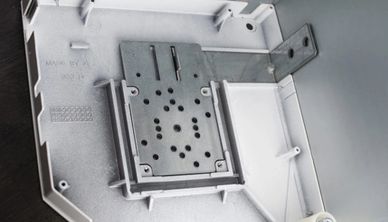

Reinforced Endplates
Touch Screen Control Box
Reinforced Endplates
The end plates are made from die-cast aluminium which can be upgraded to be fitted with steel reinforcement brackets as an optional extra. These provide added security, a more secure fixing and reduce installation time.

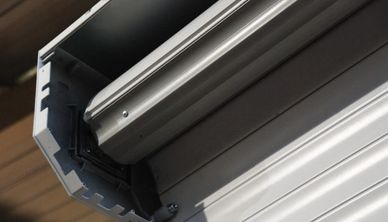

Full Box
Touch Screen Control Box
Reinforced Endplates
An aluminium box made up from a 90º and a 45º profile to create a fascia when headroom is limited and a neat finish inside the garage. A full box is required for external fitting. Full Box Fascia Strengtheners are optional for greater rigidity.

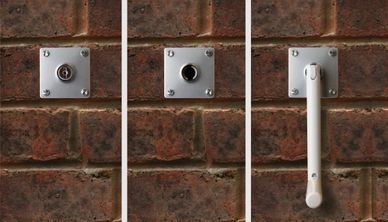

Through Wall Drive
Four Channel Handset
Through Wall Drive
For all garages with no other entrance a Through-Wall-Drive is to be fitted as an external manual release, in the event of power failure. Secured with anti theft screws. An internal gearbox ensures easy operation.

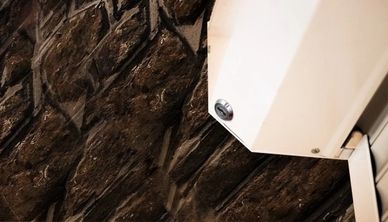

Hood Lock
Four Channel Handset
Through Wall Drive
A lockable cover for externally fitted roller doors to secure the manual release device.

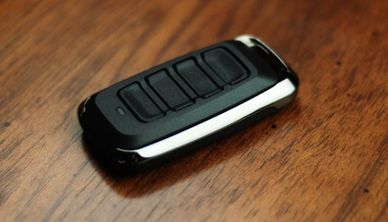

Four Channel Handset
Four Channel Handset
Four Channel Handset
Two and four channel handsets can be supplied to operate up to four doors using one handset (two channel handset is supplied as standard).

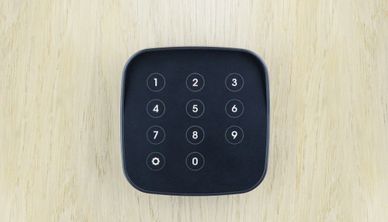

Keypad
Key-less Barrel Lock
Four Channel Handset
Add the Keypad for access to your garage without the need to carry hand transmitters.

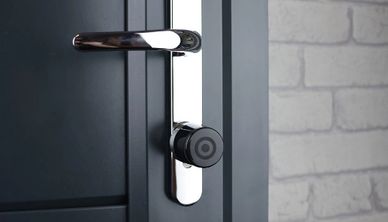

Key-less Barrel Lock
Key-less Barrel Lock
Key-less Barrel Lock
Add the feature of key-less entry to your house or garage personnel door compatible with your remote or keypad.
Alarm
Key-less Barrel Lock
Key-less Barrel Lock
For added security an Alarm can be fitted to sound when the door is being tampered with forcefully or manually lifted. The alarm will only work in conjunction with the Door Monitoring System (DMS).

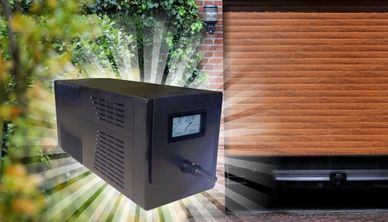

Battery Backup
Battery Backup
Battery Backup
Add the Battery Backup and never worry about power failure again. Just carry on operating your door as normal waiting for power to return.
